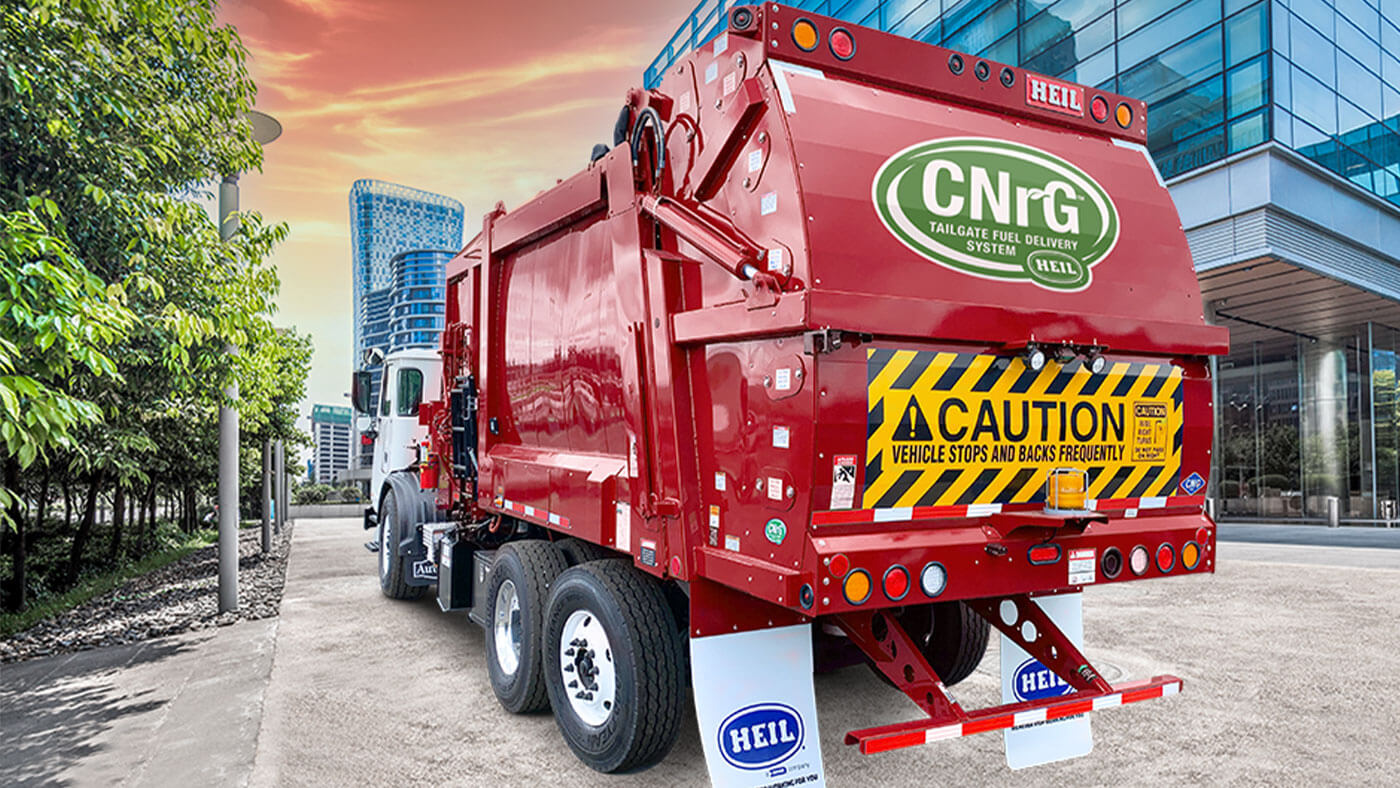

Heil CNRG Tailgate CNG Fuel Delivery System
The safer and efficient CNG tank configuration for garbage trucks.

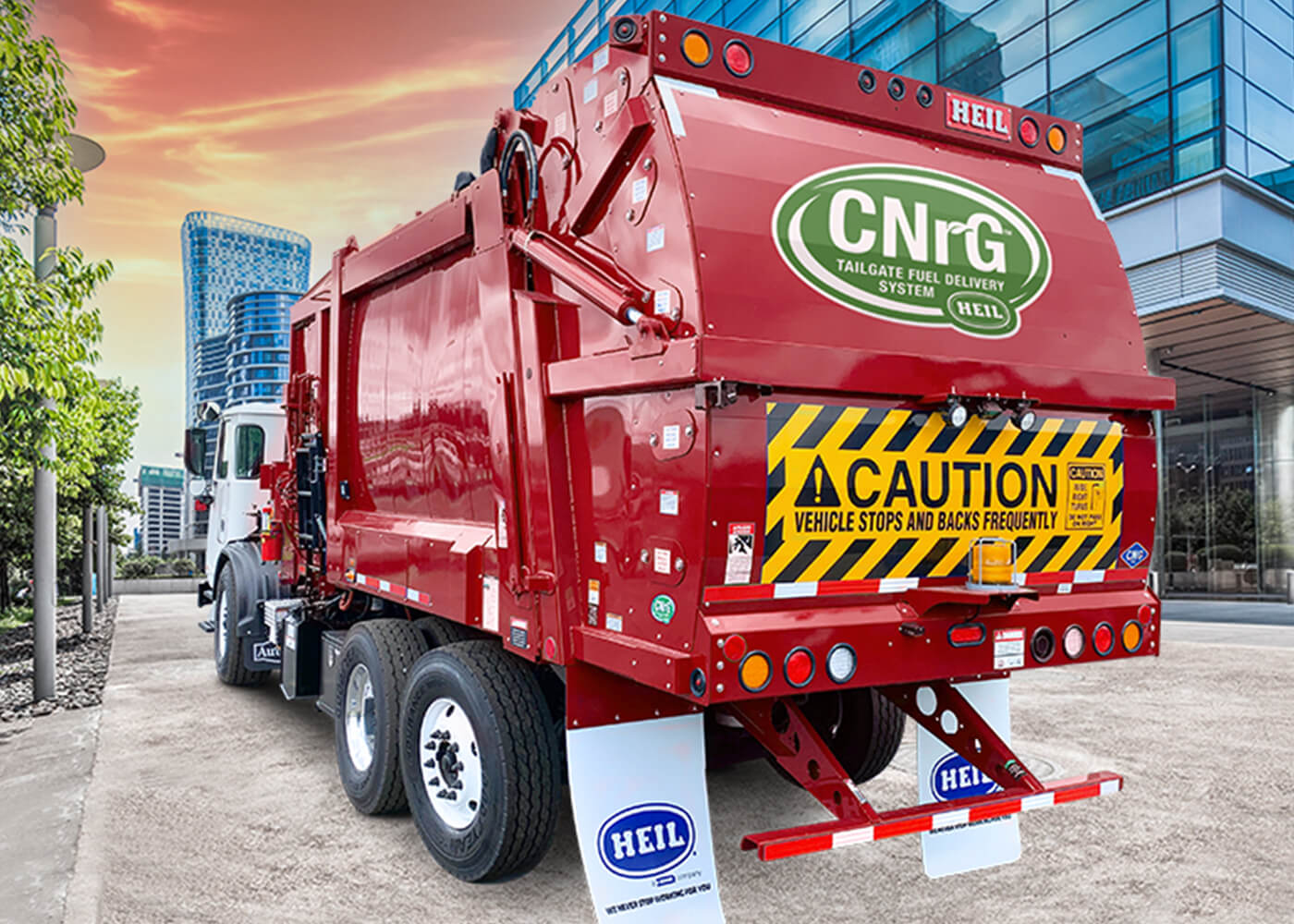

The CNrG® tailgate system is designed for safer CNG fuel-delivery, as all tanks are positioned at the rear of the truck and away from the driver. The Heil® OEM-installed CNrG tailgate also removes the need for CNG tanks to be mounted on the top of the body, reducing the overall body height by 12 inches for a lower profile vehicle. With CNrG, vehicles can access height-restricted areas and eliminate damage to a top of body tank and cabinet.

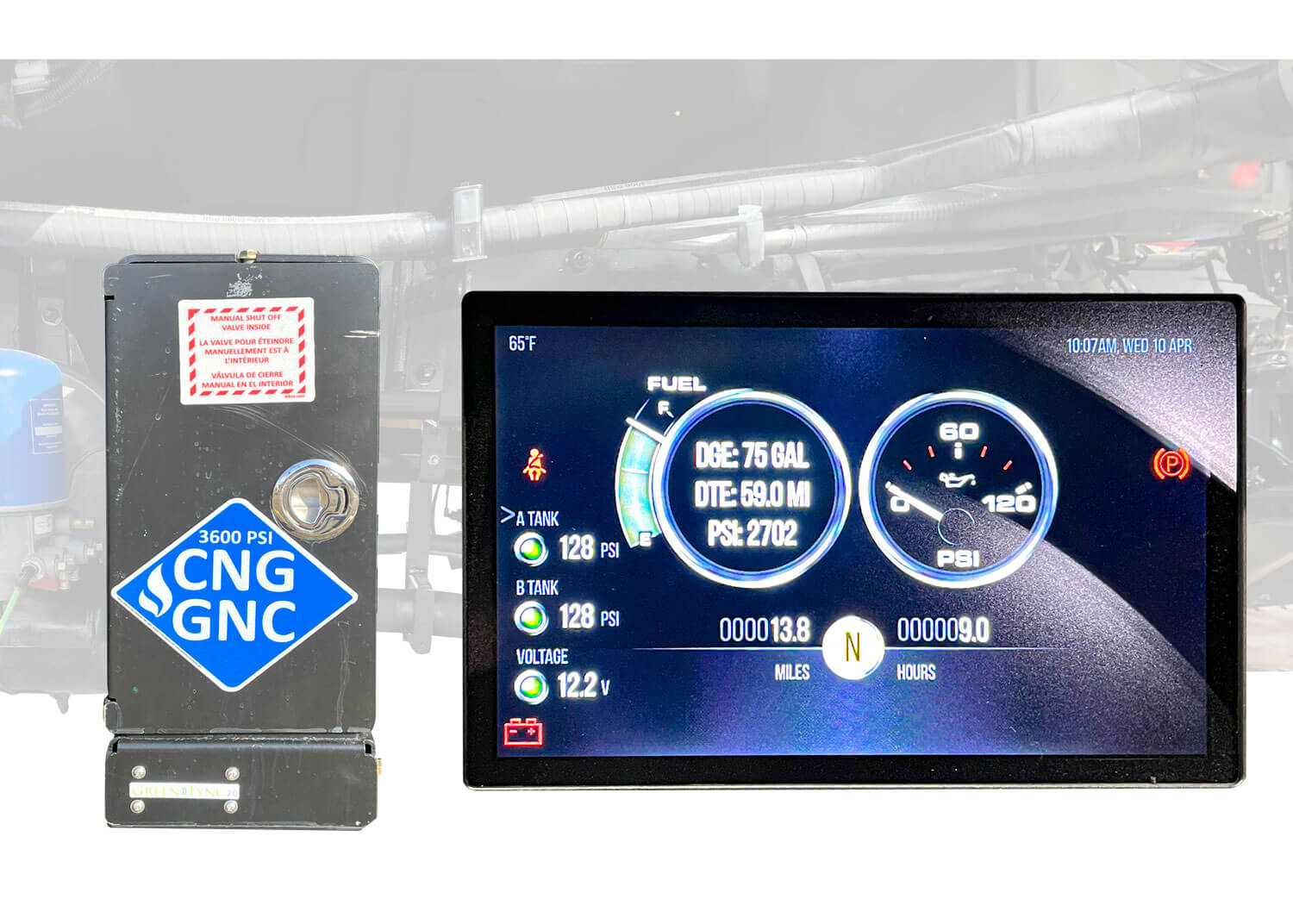

UPGRADED FMM WITH DIGITAL GAUGE
Ease driver “range anxiety’ with live temperature-compensated fuel readings, enhanced diagnostic capabilities, and built-in telematics support.
CNrG Tailgate Standard Features
All Heil DuraPack style bodies are available in up to 90 DGE configurations without frame-mounted tanks. Heil Half/Pack Front Loader and Automated Front Loader bodies are available in up to 105 DGE in a seven-tank configuration. The tailgate design also allows the use of commercial fast-fill fueling stations.
With its readily removable two-piece aluminum covers, your mechanics can perform routine inspections with ease.
The refreshed design features more stainless-steel tubing and fewer hoses. CNG routing is secured and clamped individually to avoid any wear/abrasion caused by rubbing with metal structures or other lines on the trucks.

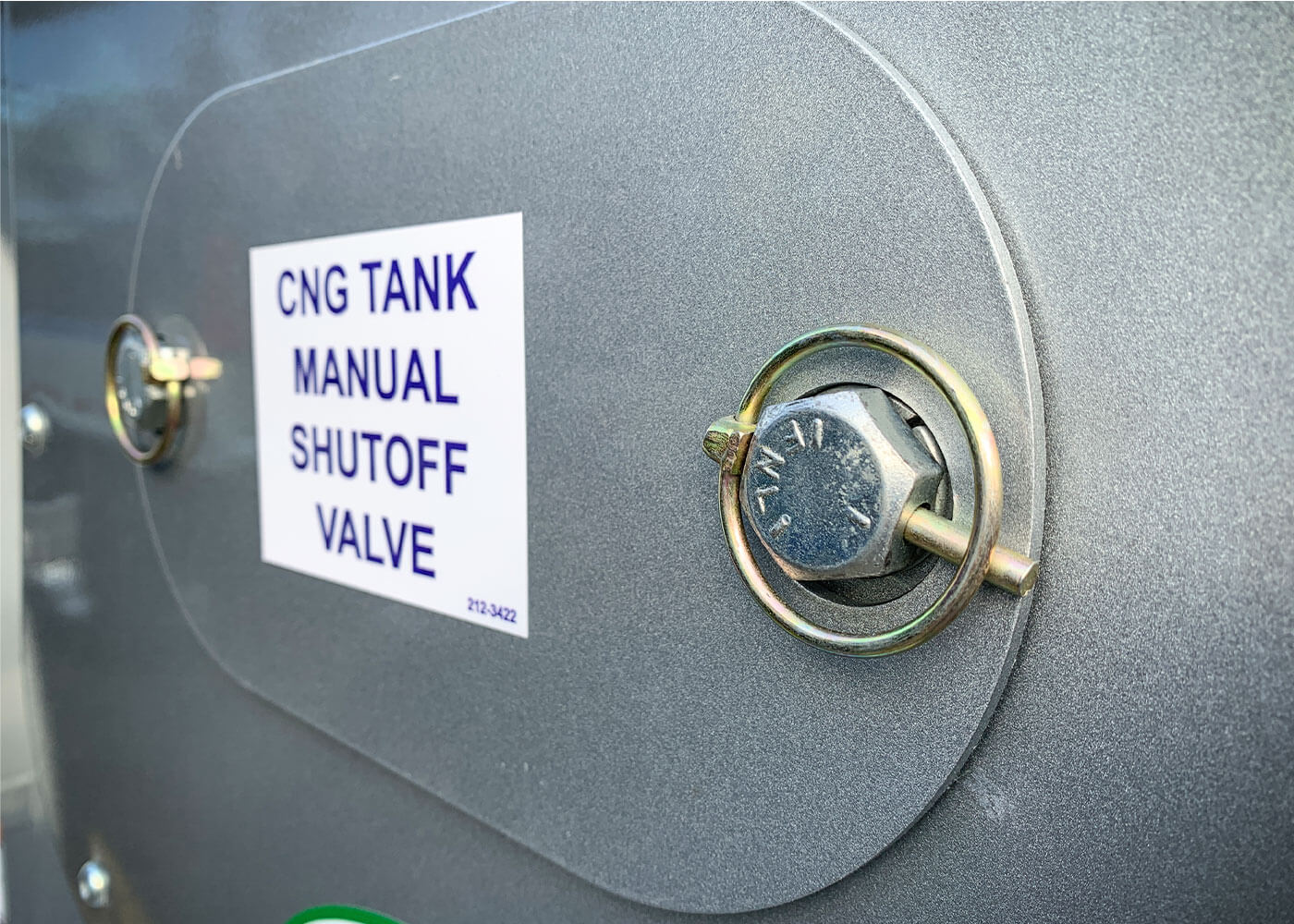

The CNrG tailgate features valve-cover plates that enable easy access, with no special tools needed. The valve-cover plates are secured by lynch pins that the operator can twist off for easy access to each tank shutoff valve.
CNG lines come standard with protective covers on tubes running across the body. Fire-sleeve insulation is also standard on all CNG hoses and coolant lines running from the engine to the regulator (located in the fuel management box.)

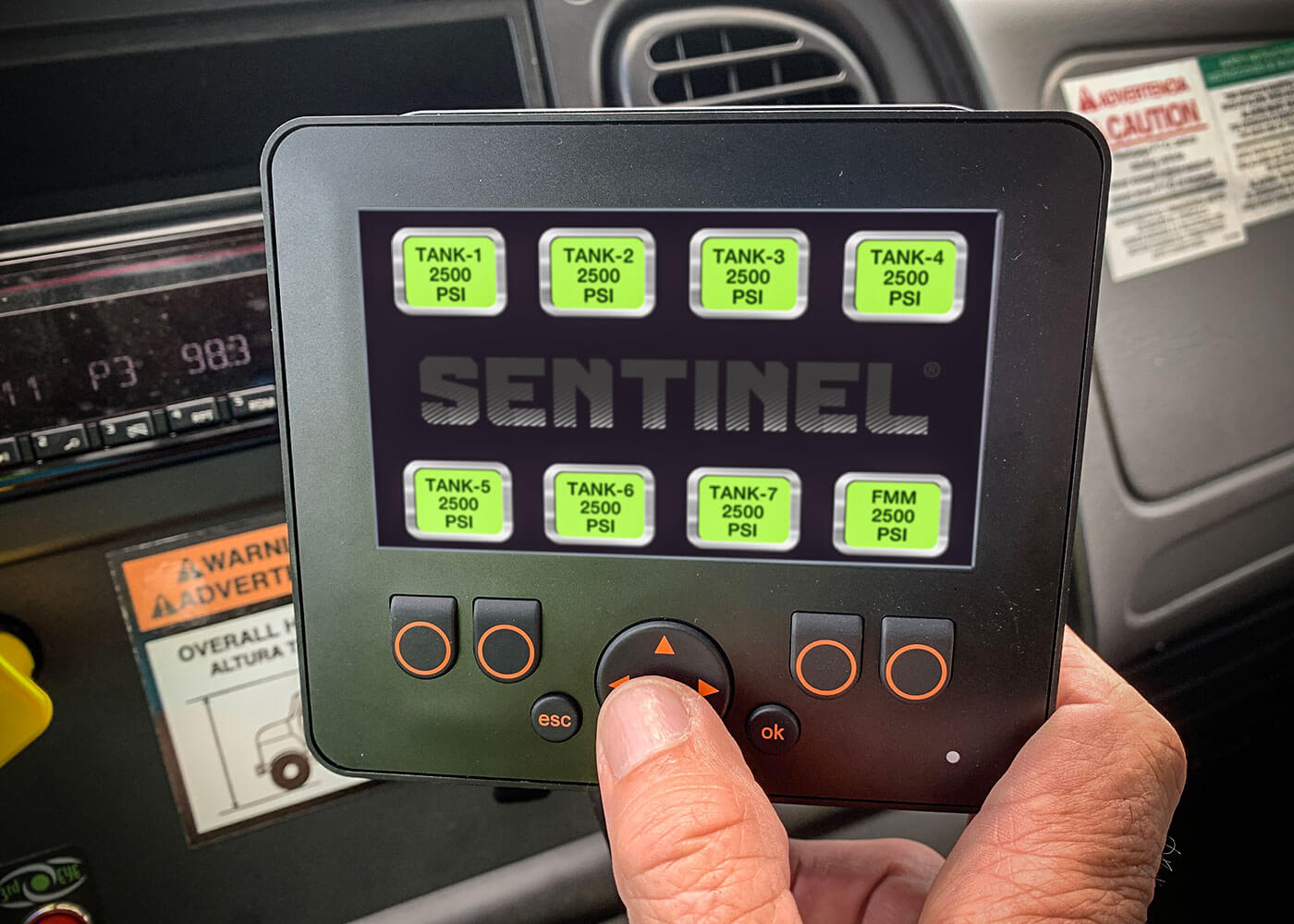

Monitor the pressure inside each tank with individual pressure gauges, in addition to pressure gauges located in the Fuel Management Module – which displays the pressure inside individual tanks even if the valves are closed.
All components and system meet the latest CNG standards, including NGV2 2021 certification, NFPA52-2023, and FMVSS 304
The CNrG tailgate structure received rigorous stress analysis and testing, simulating 15 years of operation before its release.
Heil offers tailgate assemblies and tank add-on kits to remount a body onto a CNG chassis. Upgrade an existing CNrG tailgate fuel carrying capacity by purchasing upgrade kits to add more CNG tanks to the truck. The upgrade is available from three tanks up to six tanks on all DuraPack bodies (including the LowRider) and seven tanks on Half/Pack bodies.
Discover What Sets The CNrG Tailgate Apart

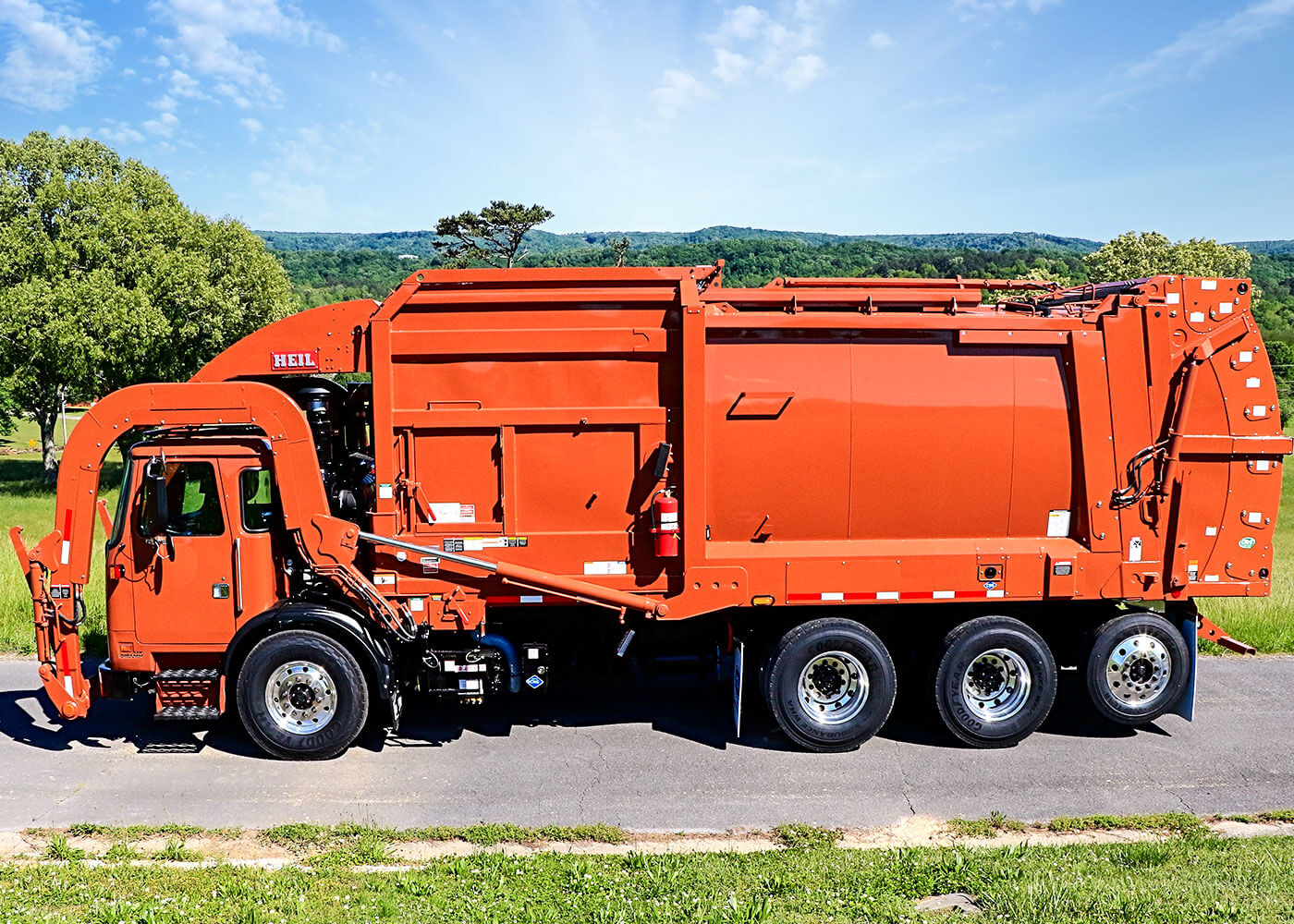

LOWER OVERALL HEIGHT
The CNrG tailgate removes the need for roof-mounted CNG tanks. This reduces the overall body height by 12 inches for a lower profile vehicle that can access height-restricted areas and eliminates damage to a top-of-body tank and cabinet.

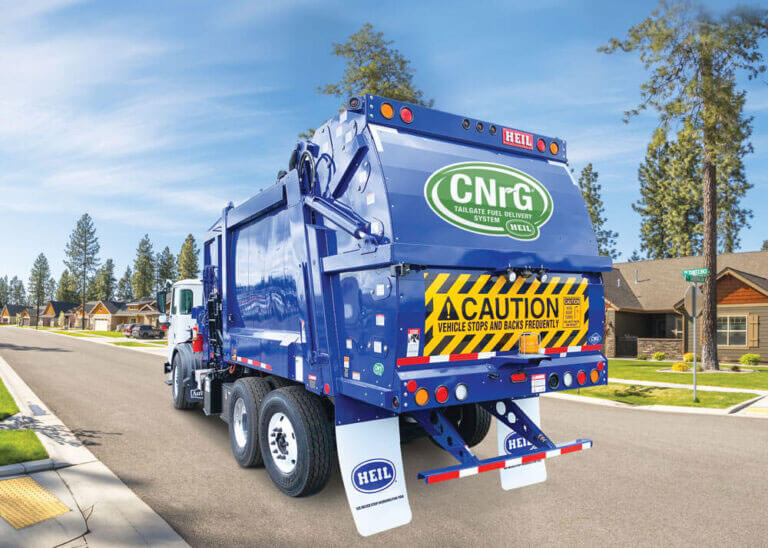

IMPROVED WEIGHT DISTRIBUTION
With the CNG tanks located in the tailgate, weight is shifted to the rear of the truck and lowers the load placed on the front axle.

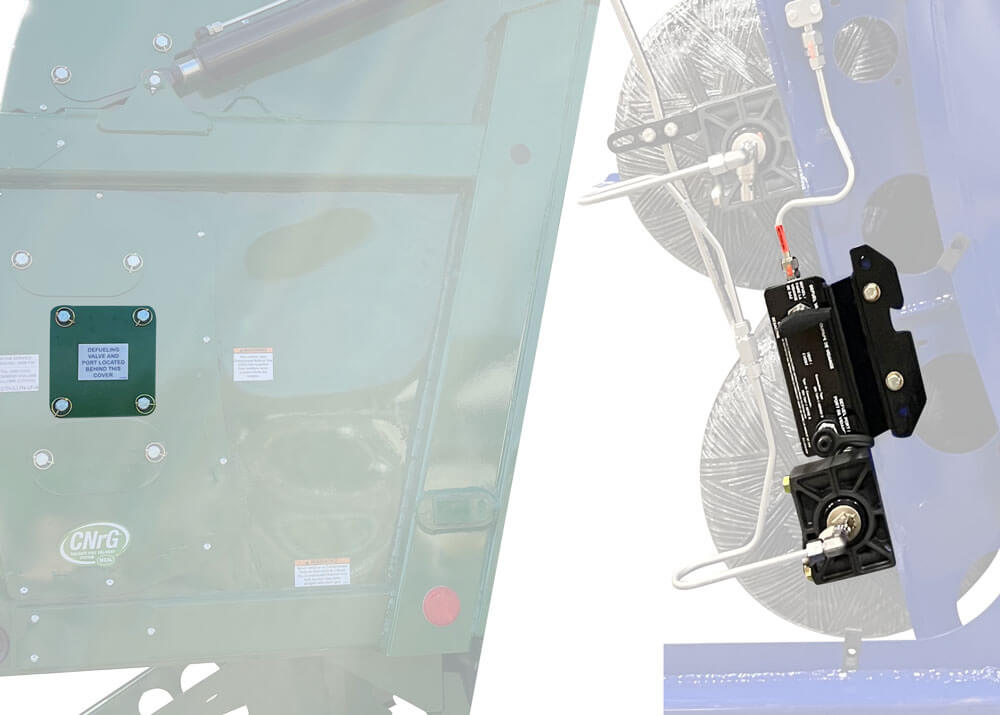

DEFUEL VALVE
A de-fuel port is located on the tailgate’s curb- side and accessible from the ground. This provides an easier and more efficient method to remove fuel from the system if needed for maintenance.
